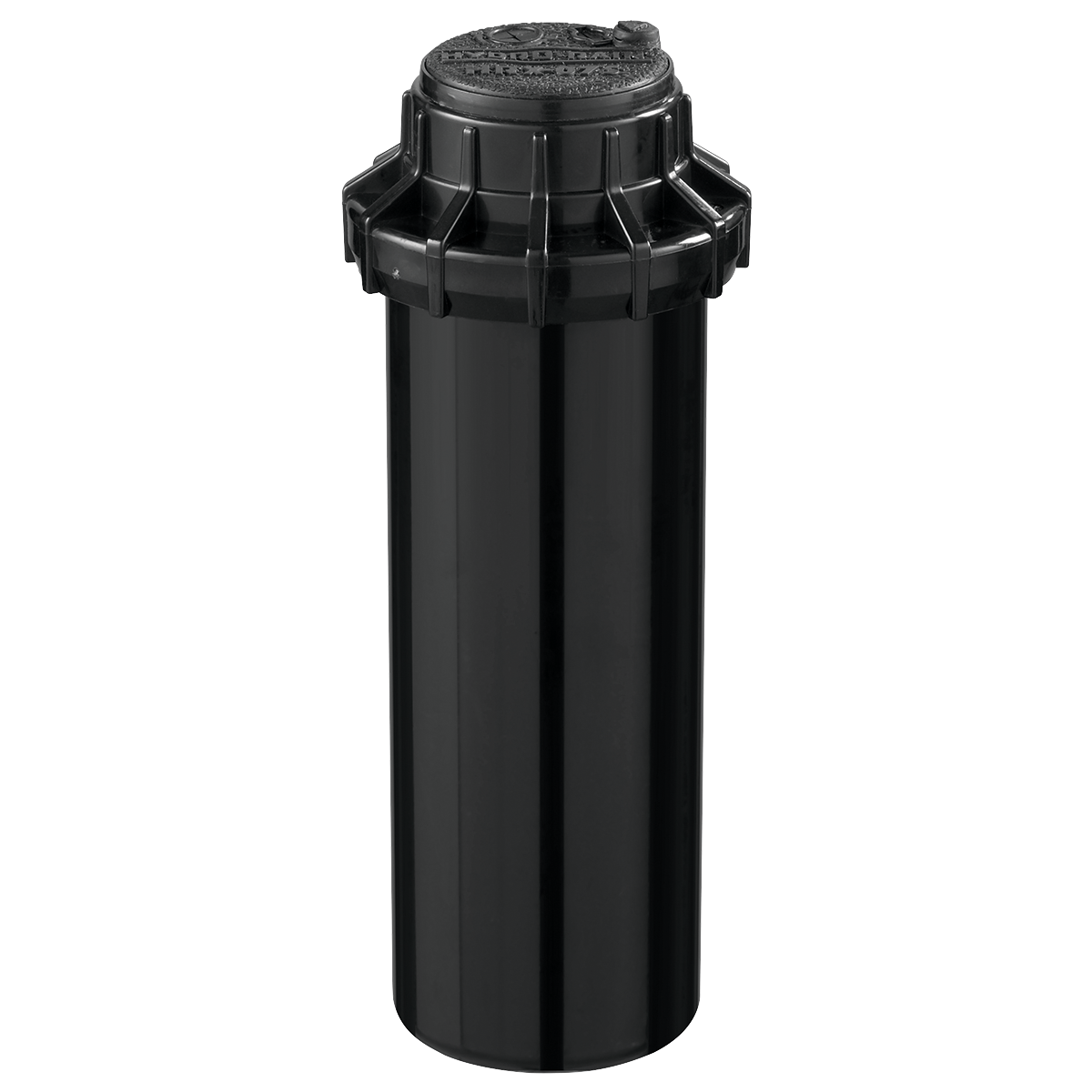

Hydro-Rain’s top performing rotary sprinkler for lawn and garden areas is the HRX 075. Through its broad selection of precision nozzles, the HRX provides industry-leading distribution uniformity. Putting water where you need it. That is the engineering mission behind the manufacturing of Hydro-Rain’s HRX Series Rotors.

FEATURES AND BENEFITS

• Uniform coverage with matched precipitation across nozzles #1 through #4 and low angle nozzles

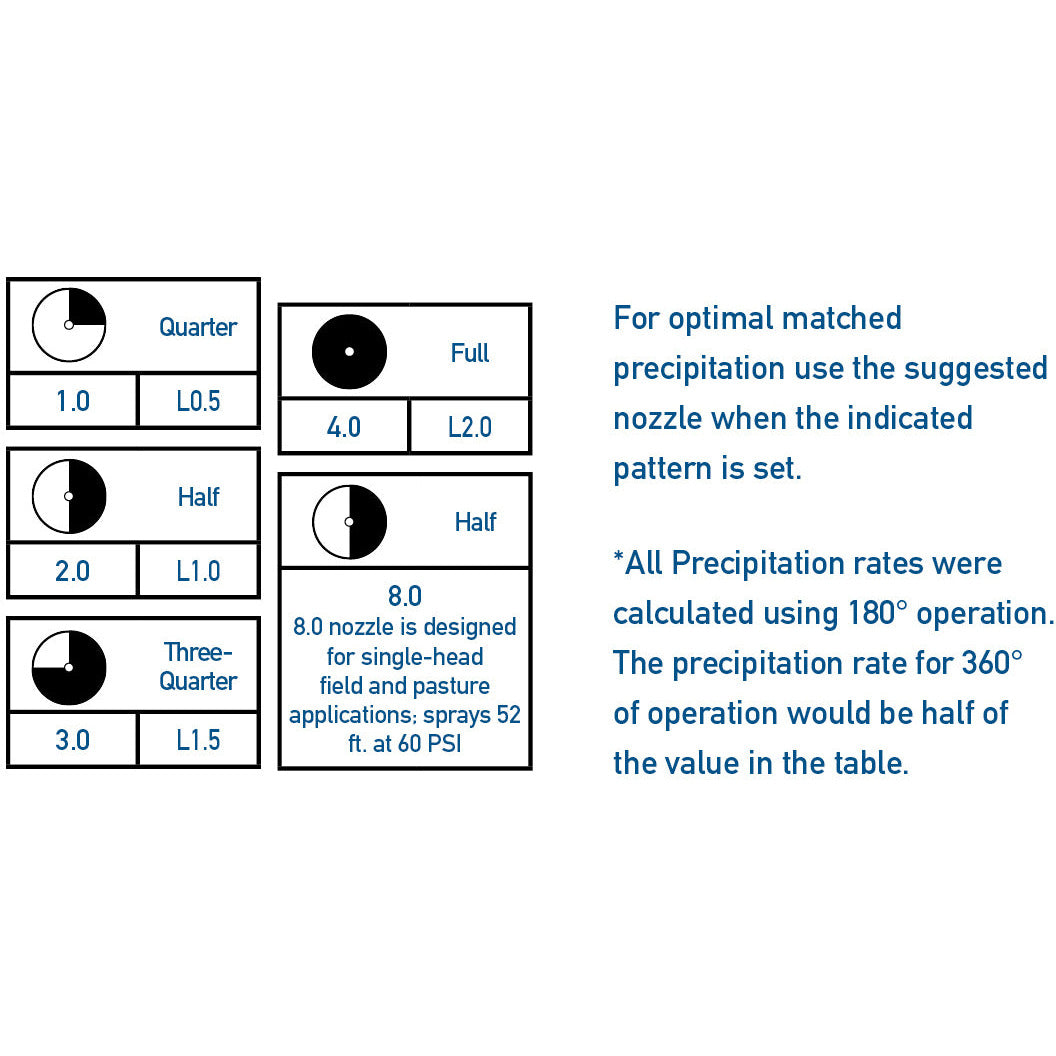

• Easy-to-match precipitation nozzle system. Use nozzle #1 for 90°, #2 for 180°, #3 for 270°, and #4 for 360°
• Rubber cover keeps the dirt out of adjustment components
• Lubricated gear assembly provides years of reliable use

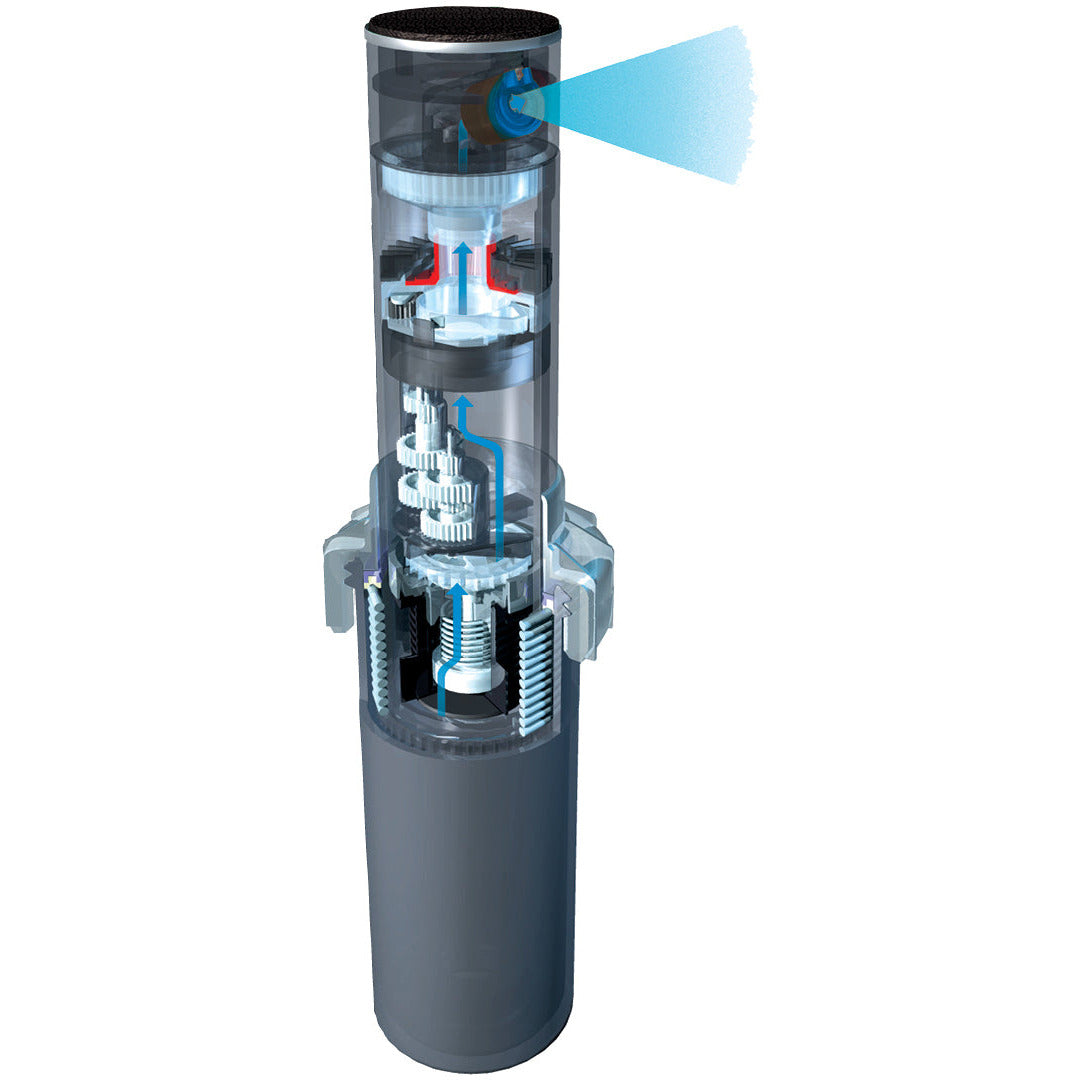

• Precision reversing mechanism enables smooth non-delayed forward and reverse rotation
• Adjustment key changes arc from 40-360
• Radius can be adjusted from 100-25%

• Precipitation rate: 0.10 to 1.03 inches per hour
• Radius: 22' to 52' (6.7 to 15.9 m)
• Adjustable radius: Radius may be reduced up to 25%
• Maximum radius: 52 feet at 65 psi with number 8 nozzle installed
• Operating Pressure: 30-70 psi (2.1 to 4.8 Bars: 206 to 482 kPa)
• Flow Rate: 0.3 to 9.6 GPM
• Inlet: 3/4" Female Pipe Thread
• Nozzle outlet trajectory: 25 degree standard or 13 degrees low angle
• Nozzle installed: Number 2
• Nozzles included: 10 nozzles consisting of standard and low angle nozzles.
• Adjustable Arc: 40 degrees to 360 degrees
• Pop-up Height: 4"
