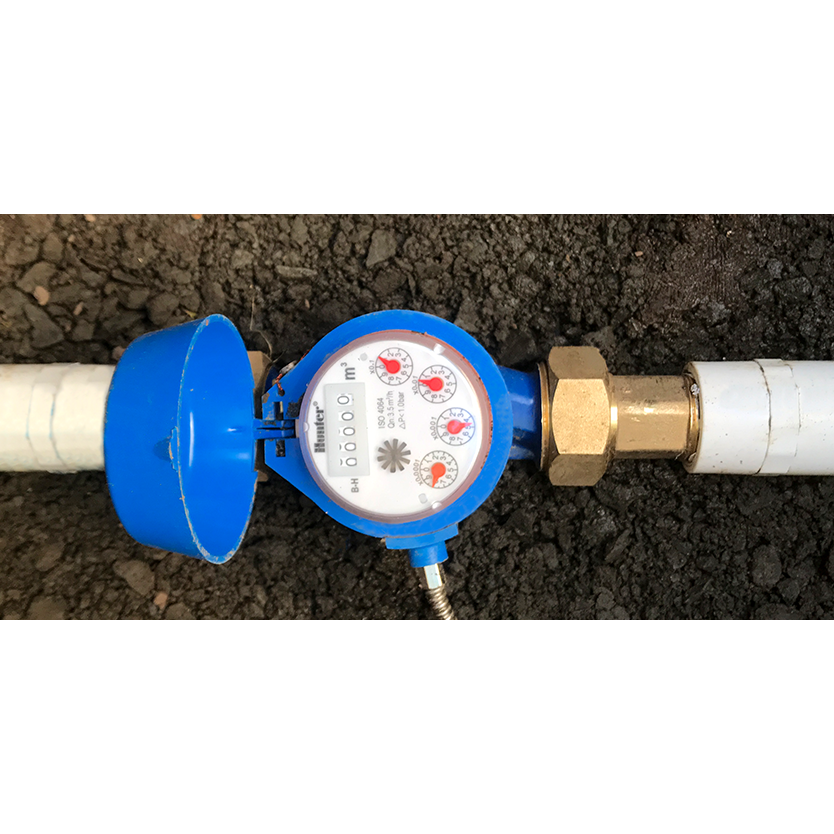

The simple-to-install HC flow meter, now with additional range options to accommodate larger pipe sizes, allows customers to better monitor flow rates in systems with Hydrawise-enabled Wi-Fi controllers. When connected to the Hydrawise platform, the HC flow meter provides a convenient option to detect, monitor, and report critical flow zone data and total system flows.

By including an HC flow meter as part of a Hydrawise system installation, customers add an additional layer of landscape protection. This ensures their investment is monitored, their plants are healthy, and their outdoor living space remains in excellent condition. For contractors, a flow meter is a great way to build their businesses through increased offerings and top-level customer service, as problems can be addressed immediately before landscape degradation occurs. For landscape designers, the HC flow meter adds an extra security that helps preserve their thoughtfully designed landscapes.

The HC flow meter connects to Hydrawise-enabled controllers, allowing for:

• Flow monitoring
• High- and low-flow alerts
• Leak detection
• Water outage during irrigation
• Total water use reporting
• Zone water use reporting

The HC flow meter now accommodates additional ranges. The flow meter designed for the U.S. now has four options covering ¾", 1", 1½", and 2", all with NPT threads and an on-meter, dial-type gauge that displays readings in U.S. gallons.

Key Benefits:

• Compatible with HC, HPC, Pro-HC, and HCC

• Provides station-level flow totals

• Sends automatic alerts in the event of high-flow, low-flow, or unscheduled flow conditions

• Flow reports within Hydrawise software can display total system water use and individual station water use for accurate water budgeting and tracking

• Robust brass construction with union fittings for easy installation and removal for winterization

• Analog dial on the face of the meter displays daily flow totals and a leak detector

Specs:

Inlet Size: 1" NPT
Height: 3.6"
Length: 10.3"
Depth: 3.1"
Weight: 3.1 lbs
