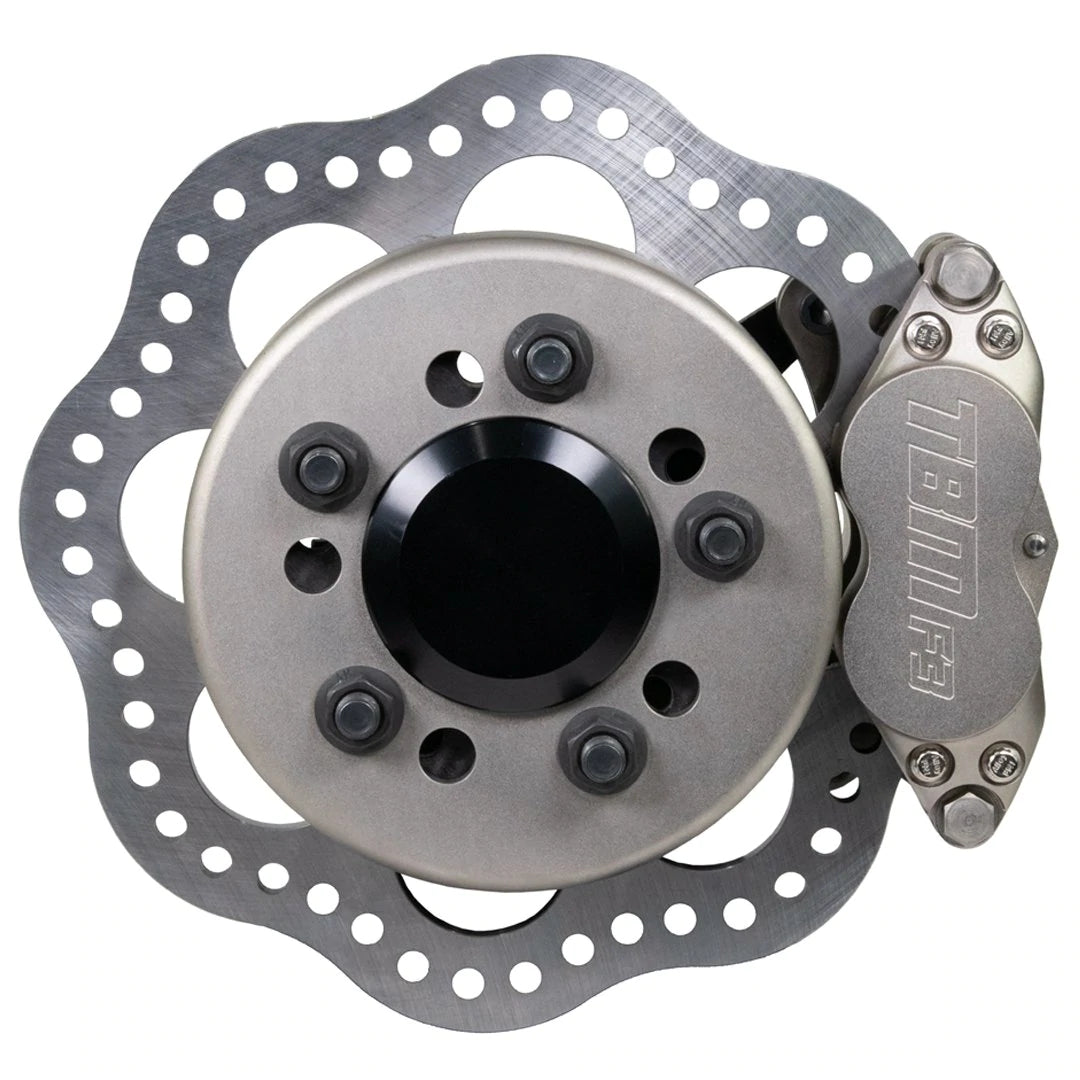

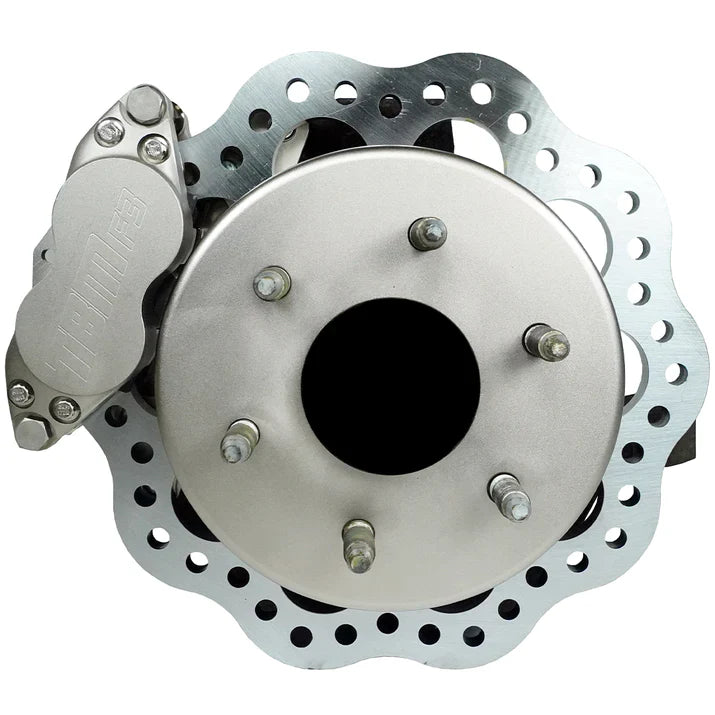

2015-24 F150 Rear Drag Brake Kit F3 4 Piston Calipers 6x135mm BC (Stock Housing Ends) 003-0342-1 / 003-0342LD-1

Note: NO modification needed to fit rear brakes on stock axles

Note: INCLUDES Brake Lines

Instructions:

**Saves over 30lbs**

TBM Brakes afford racers one of the lightest and highest performing brake setup on the market. These brakes have proven themselves in every realm from Top Fuel Dragsters to Hot Rod Drag Week and everything in between. TBM is quickly becoming the winning edge in brake system design. With a revolutionary design TBM Brakes has lower drag and friction than competitors. Lower rolling resistance means quicker ET and better overall performance as well as longer pad life.

Included in this kit:

• (2) F3 Calipers 002-0192SSP-1 / 002-0192SSP-2
• (2) 12.500"x.500 rotors
• (2) sets pads
• (2) Caliper mounting brackets 17-0080 or 17-0105
• (2) Hats for 6 x 5.5 & 6x135mm Bolt Circle (GM Truck Late/Ford Truck Late)
• Mounting hardware kit
• (2) Rear Brake Lines

Ebrake is removed with this brake kit

For custom bolt pattern please contact us directly, otherwise OE factory bolt pattern will be issued.

14mm Wheel Studs

This kit fits the following:

• 2015-2024 F150 2WD 9.75" Rear ends

• 2015-2024 F150 4WD 9.75" Rear ends
• 2015-2022 F150 2WD 8.8" Rear ends

• 2015-2022 F150 4WD 8.8" Rear ends

Please note: #85 compound pads need only be used in hard braking situations only. We do not recommend or suggest these for any situations where light braking or non extreme conditions are not present.

Rear End Reference Drawings

9.75" / Super 8.8 (18mm Bolts - 7.087" Center 2 Center)

Light Duty 8.8" (16mm Bolts - 5.827" Center 2 Center)

8.8" (14mm Bolts - 6.299" Center 2 Center)
