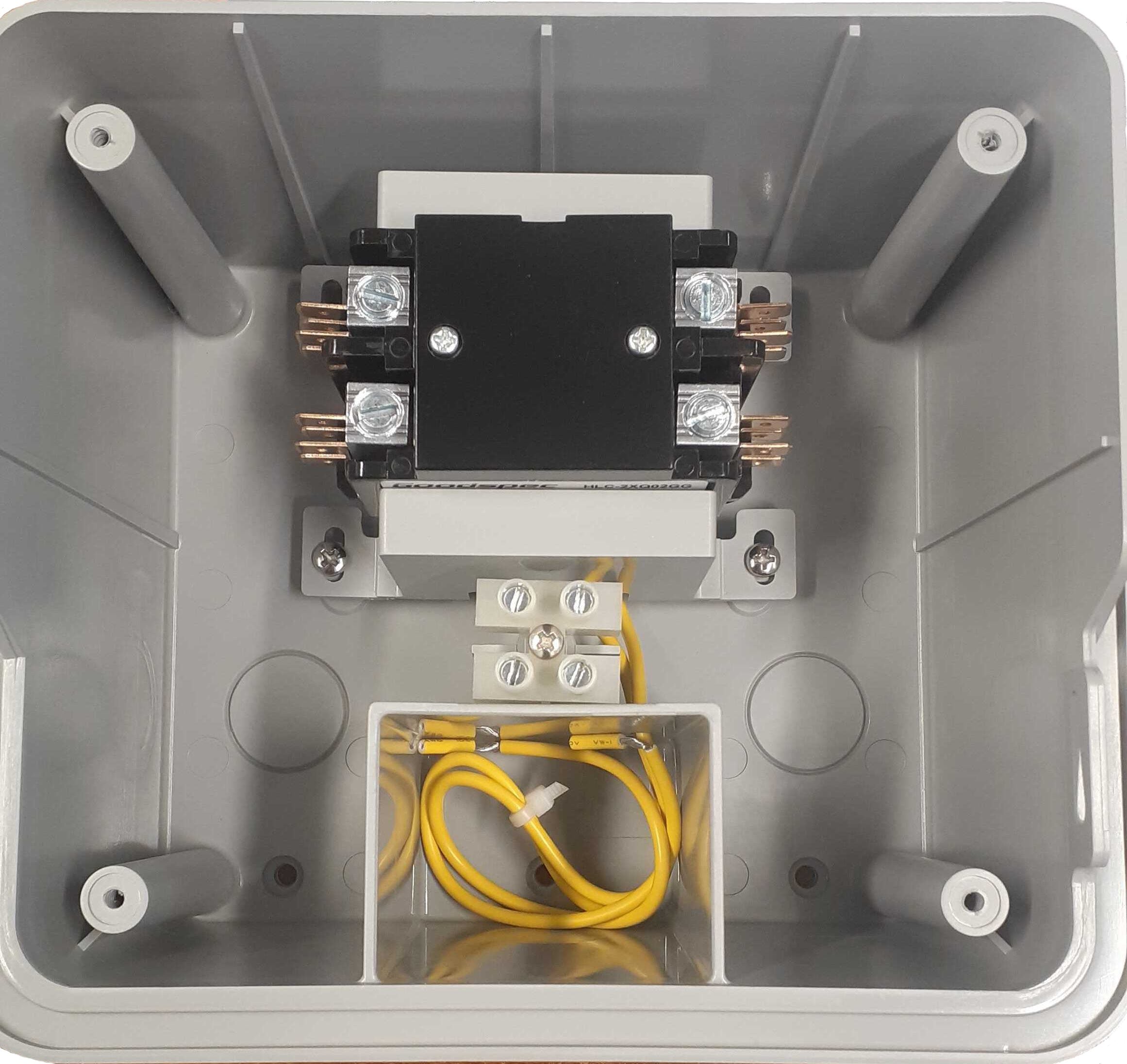

When a system requires the use of a booster pump or pulls water directly from a creek or pond, it’s imperative to include a relay that can be counted on to activate the pump each and every time. Hunter’s Pump Start Relay (PSR) has been created to provide that reliability–as well as a lockable NEMA rated enclosure–at an economical price. Available in a choice of three models to accommodate a variety of power sources and landscape needs, the PSR is fully compatible with all standard 24VAC controllers. It’s also designed with user-friendliness in mind. Flying wire leads allow for effortless 24V connections. Plus a wide array of "knockouts" make wiring easy and accommodating to most mounting specifications.

Key Benefits

• A pump start relay family for a variety of voltage and power requirements.

• 24 VAC flying leads make connection to the controller quick and easy

• Suitable for conventional wiring or two-wire decoder activation, allows flexible installation options

• Provides a solution for irrigation controller and pump start relay installations that have insufficient power to activate the pump

• Includes solid state relay and local 24 VAC transformer for simple PSR activation

Operating Specifications

• Recommended installation: minimum 15' from irrigation controller
• Primary AC power input: 120/230 VAC
• Secondary AC power output: 24 VAC, 1.6 A
• Relay rating: Double-pole, double-throw solid state (10 A)
• Approvals: IP44, UL, CE, NEMA 3R rated
• Warranty period: 2 years
