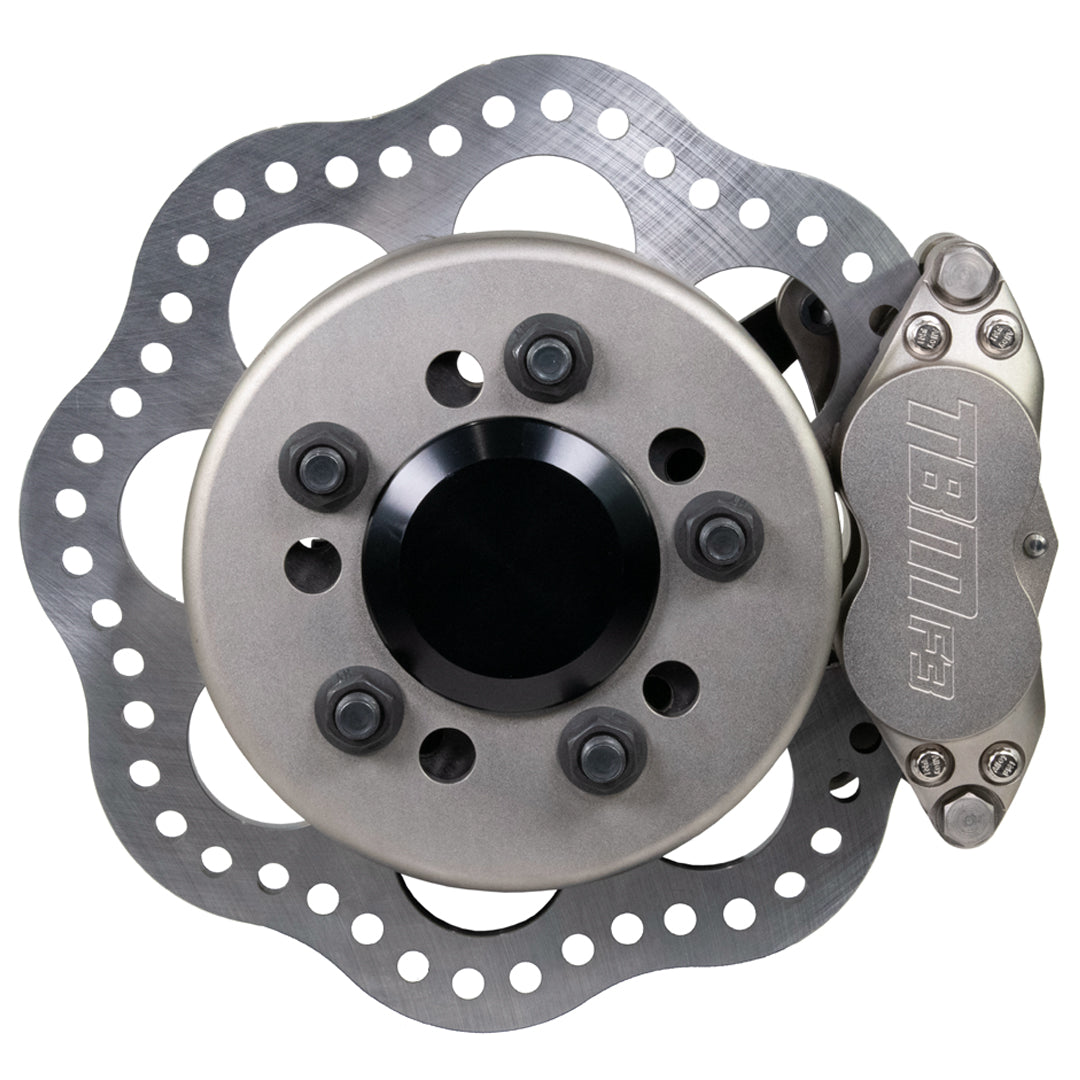

15-23 Ford Mustang S550 Rear Drag Racing Brake Kit (Reusing Factory Hubs) - 001-0297-1

Instructions:

Drill Template Instructions:

Rear Brake Lines:

Note: This Kit requires usage of an included drill fixture to drill and tap holes in factory spindles for use with supplied bracket. This kit can be purchased separately as well 12-0550. For install/usage instructions on drill fixture:

Kit Includes:

• F3 4 Piston Calipers   /
• (2) Billet Aluminum Rotor Hats 204-0227
• (2) 11.50x.375 Revolution Rotors
• (2) Mounting Brackets 16-0267-1 / 16-0267-2
• Full Set #1 Compound Standard Brake Pads
• Hardware Kit 011-0297
• Drill Fixture for modifying factory spindles/knuckles
• Kit Weight: 22.90 LBS

Note: These will not fit 2020+ GT500 Rear Knuckles

Note: This Kit retains usage of factory ABS functionality, however, we do not recommend utilizing ABS braking functionality with racing brakes as it may cause unpredictable or negative effects on braking performance that can cause inadequate braking and premature pad/rotor wear.

Installation of this kit will require 3AN lines that are sold separately.

These clear most 15" drag wheels w/ or w/out beadlock rings.

For wheel offset/clearance questions, please see the attached drawing.

Watch Drill Fixture Install Video

 WARNING: Cancer and Reproductive Harm

*Please use red Loctite on all rotor bolts*

We recommend using  for all TBM Brake Kits. You'll need at least 4 (12 oz) bottles of fluid when building and plumbing a new system that is empty.
