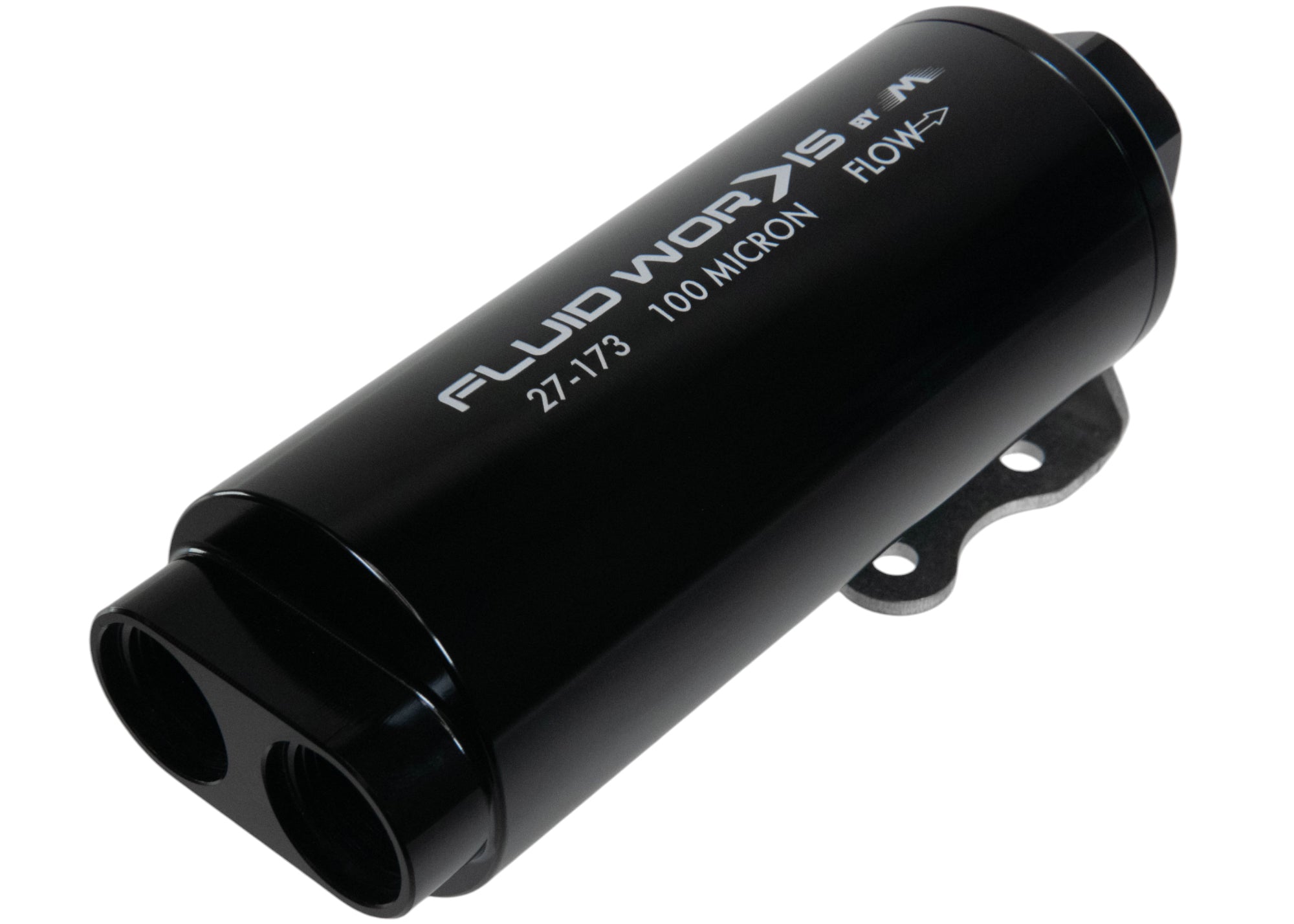

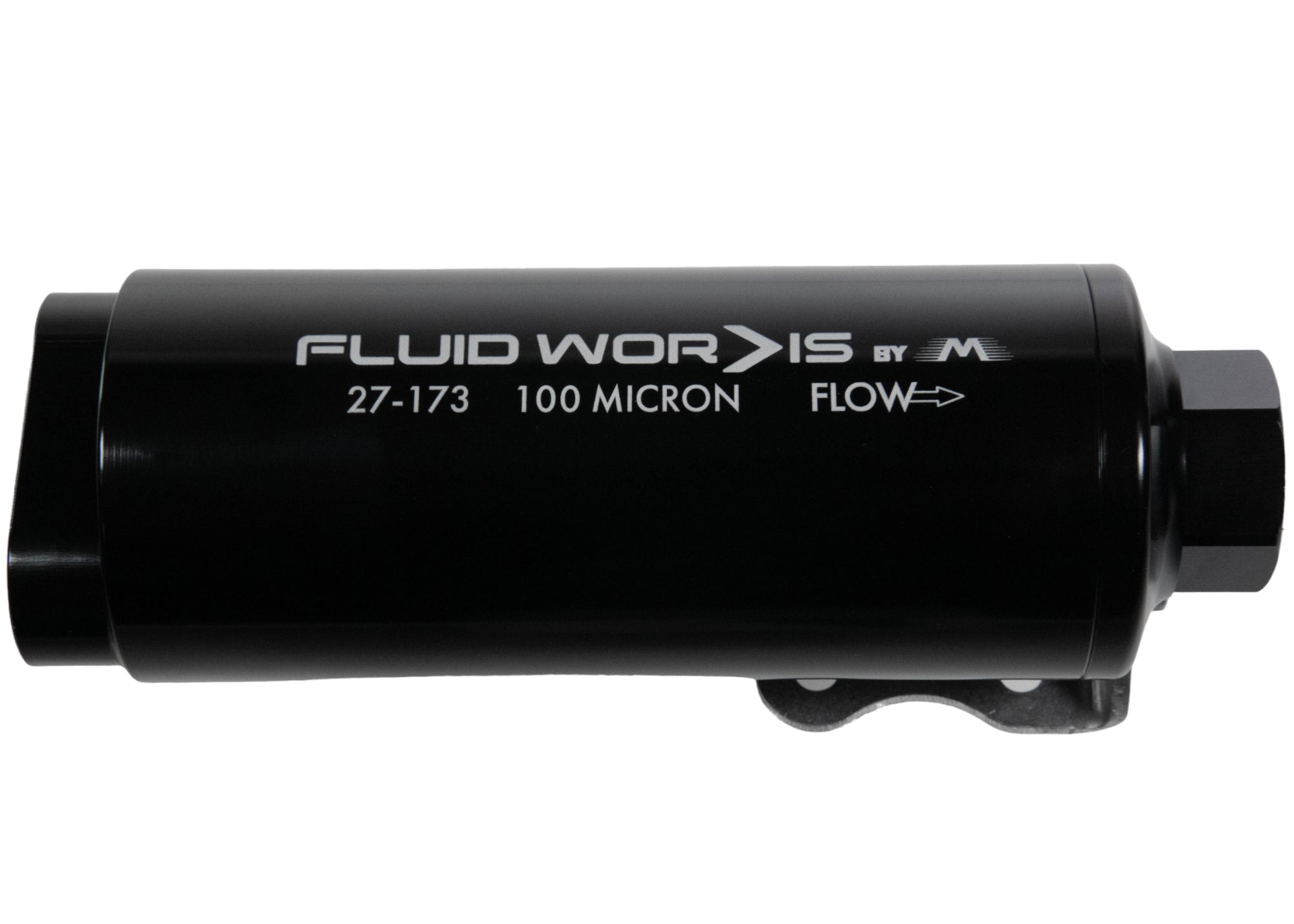

Fluidworks Dual 10ORB Inlet Pre Fuel Filter w/ Mount (100 Micron) 27-173

This filter was designed to eliminate fittings and leak points when plumbing fuel sumps that have two individual outlets, while maximizing flow!

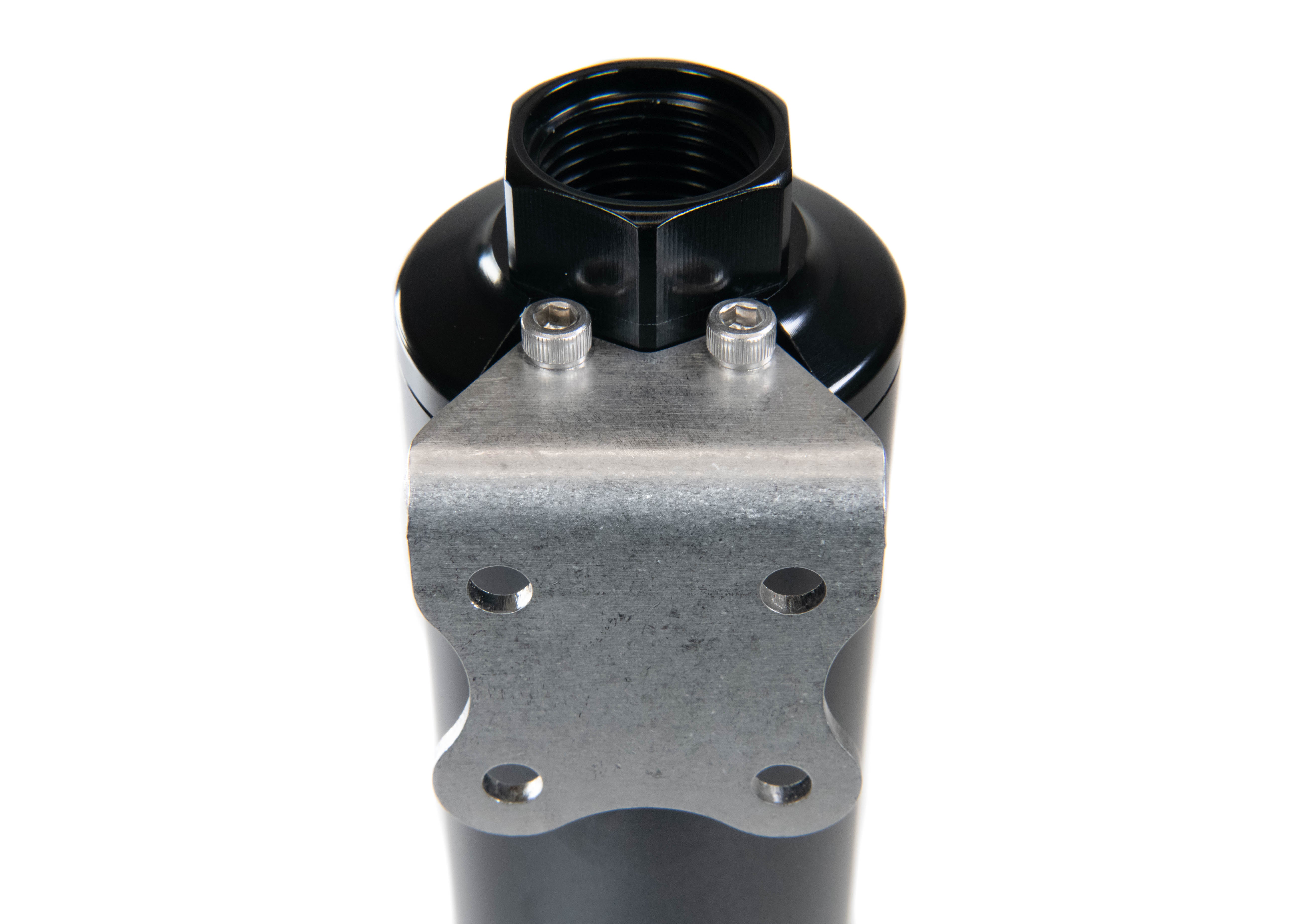

The integrated bracket system has a simple two bolt design that makes the filter mounting easy by bolting OR welding. The mounting bracket also allows you to unscrew the other side of the filter to service or replace the filter element without unbolting the bracket and fully removing the filter from the vehicle.

The 100 micron pre filter is used before fuel pumps to eliminate large and harmful particulate while allowing for high flow fuel on the suction side of the fuel pump.

Features:

• Dual 10ORB Inlet

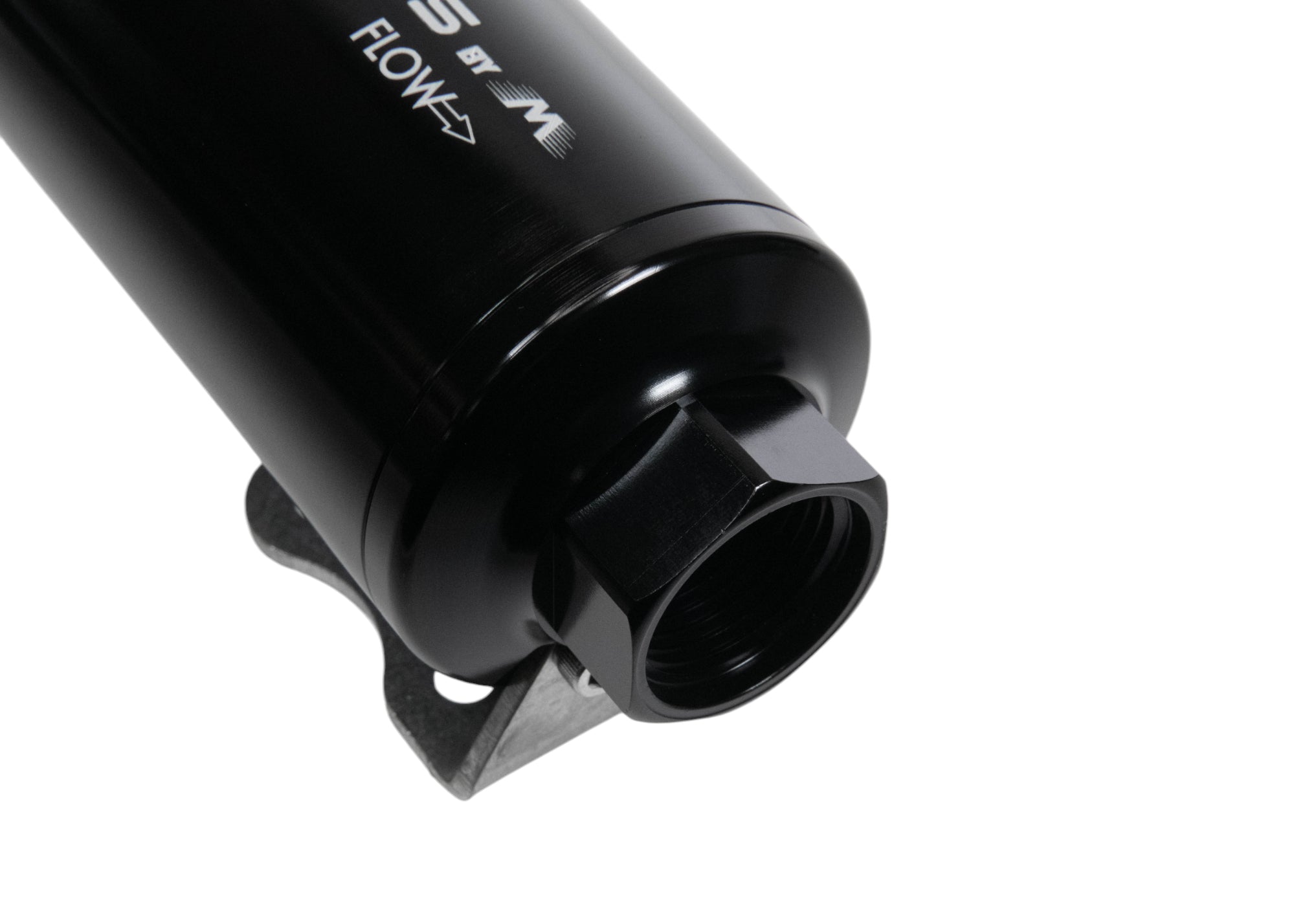

• Single 12ORB outlet
• Integrated mounting bracket for low profile and easy mounting solution
• Completely Made in the USA
• Billet Construction

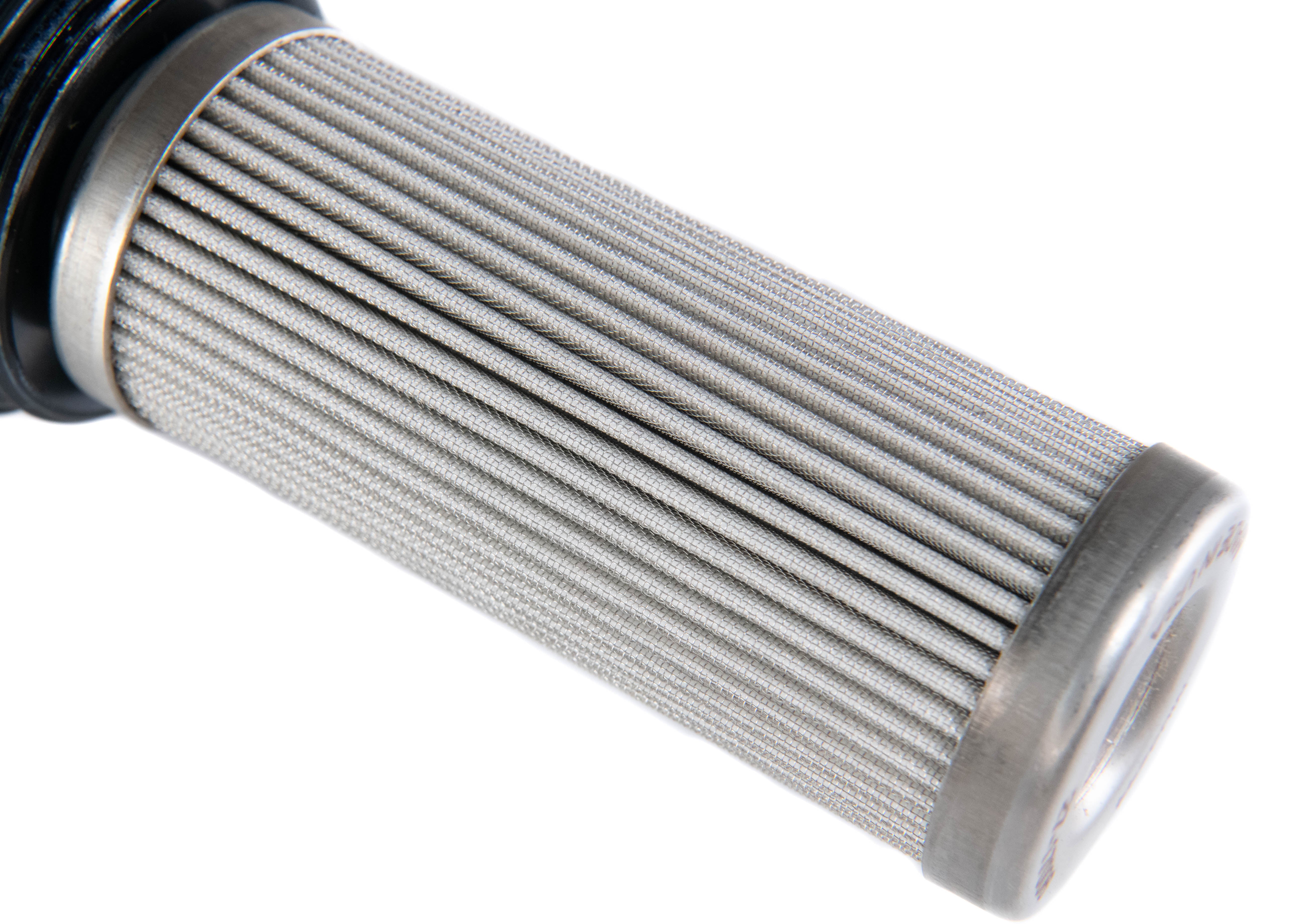

• 100 Micron Stainless mesh filter
• Supports fuel systems up to 12gpm
• Approved for use with Gasoline, Oxygenated, Ethanol and Alcohol Fuels
• Hard anodized

*For Racing Use Only*

Find -10ORB to AN Adapter Fittings:

Find -12ORB to AN Adapter Fittings:

Completely Made in the USA

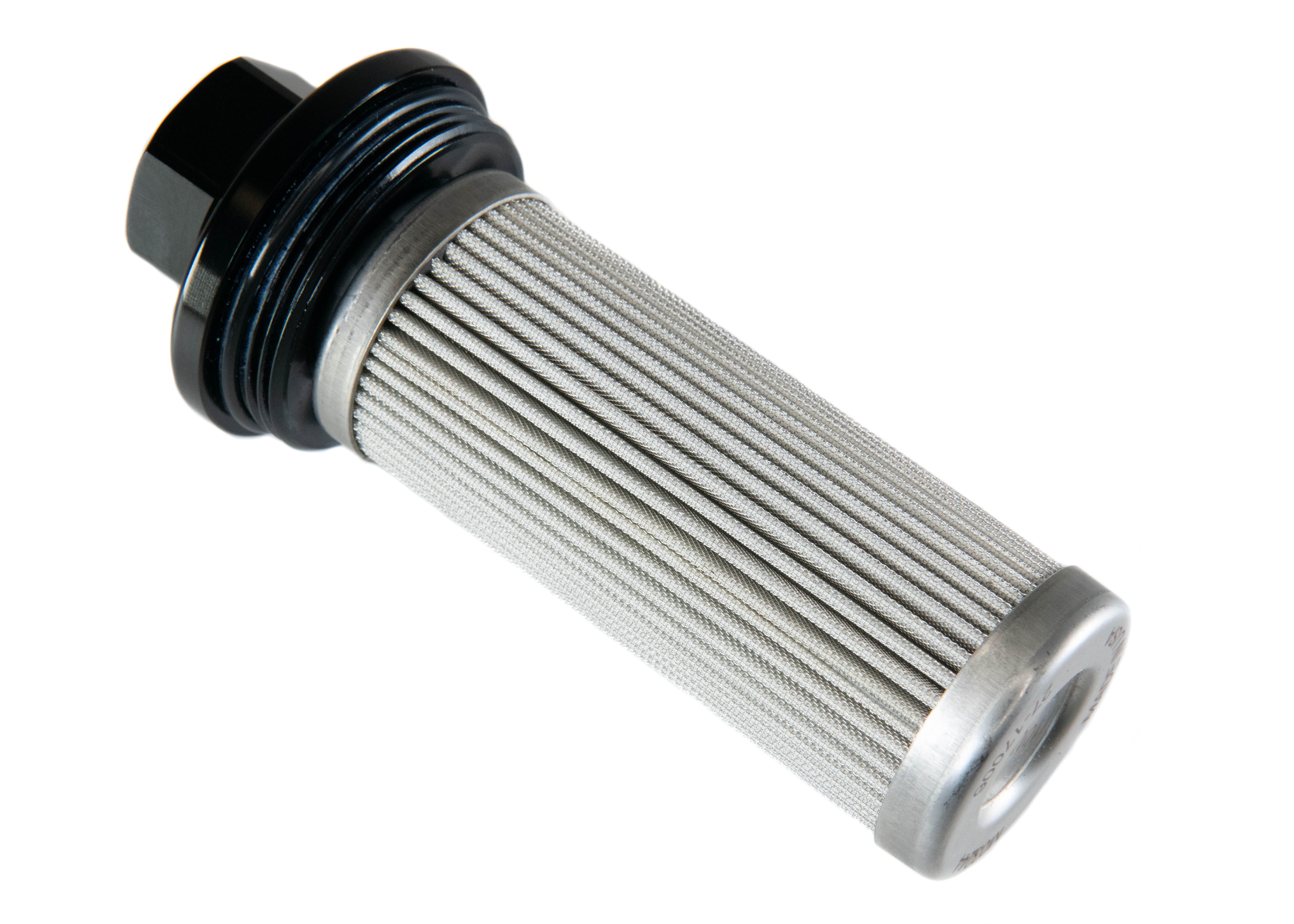

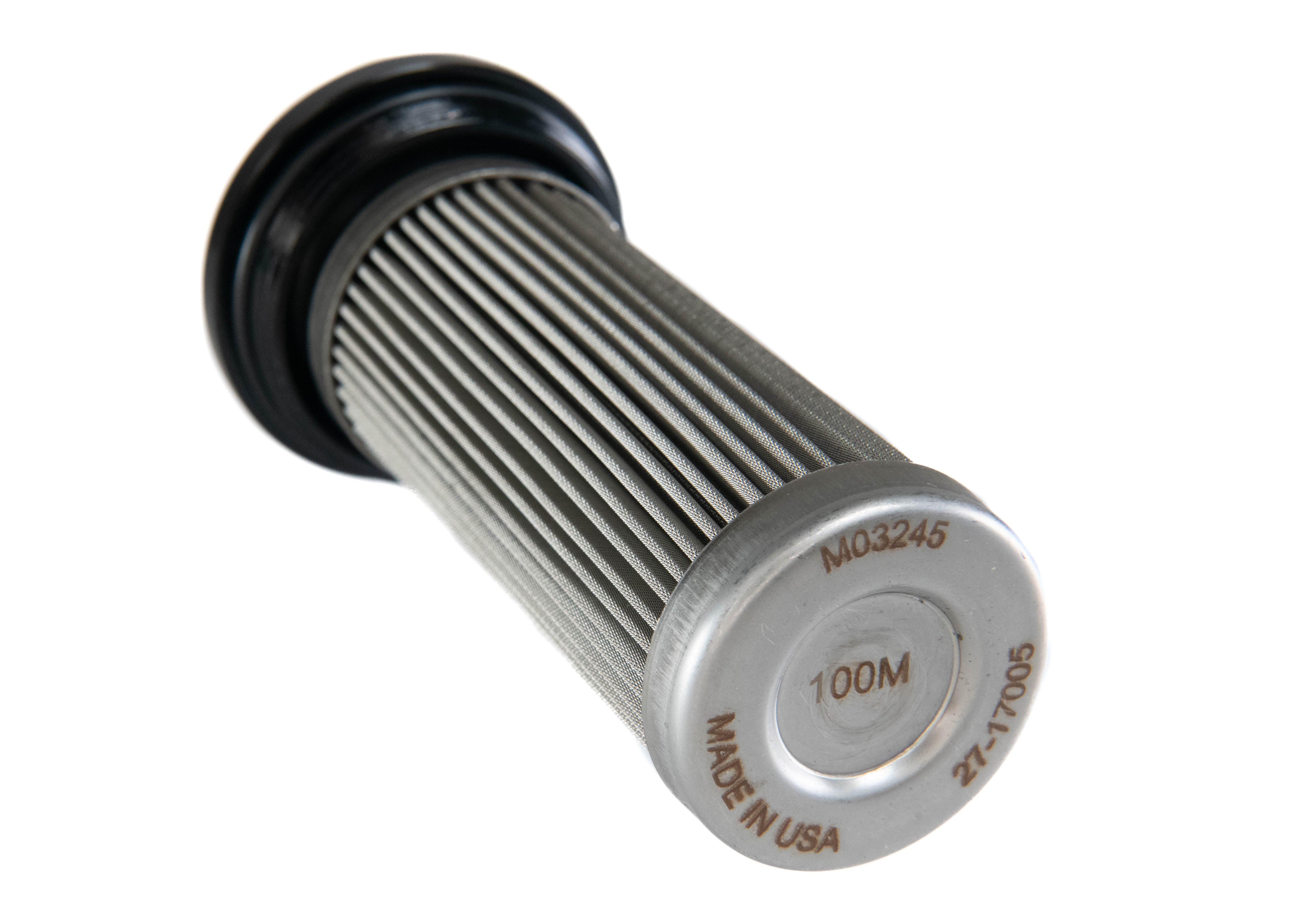

For 100 micron replacement element 27-17005:

Note: This 100 micron filter element is cleanable and serviceable.
