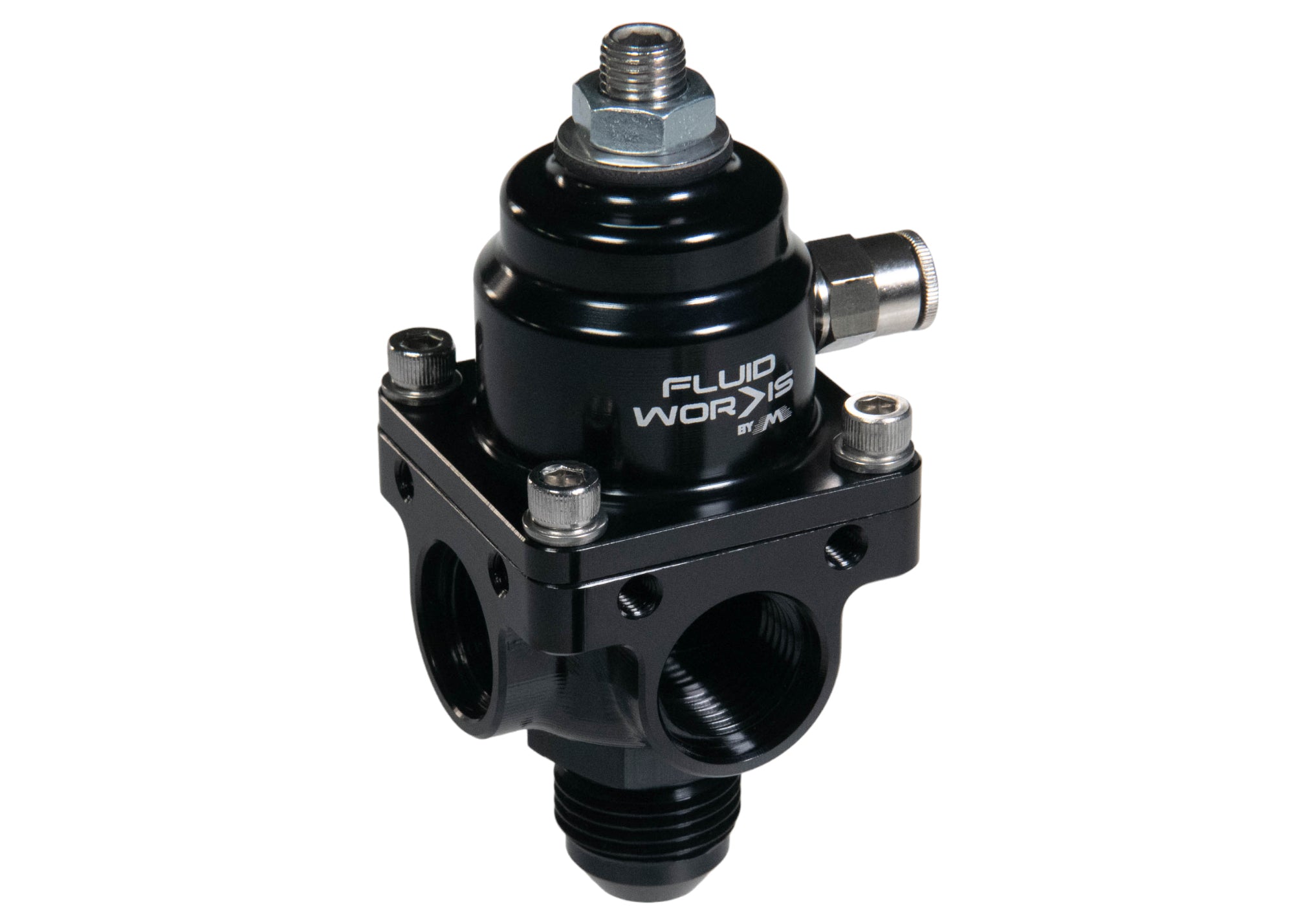

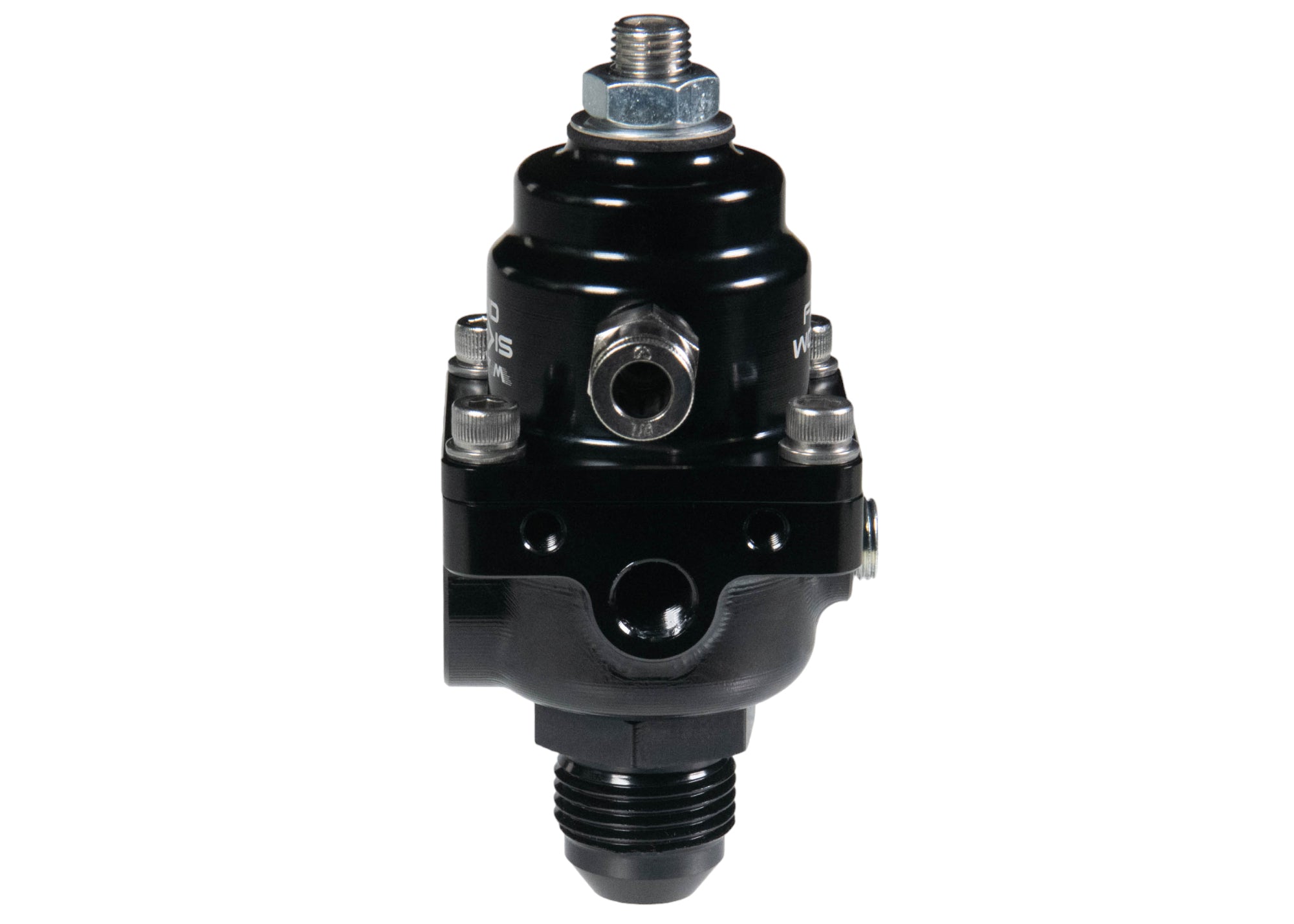

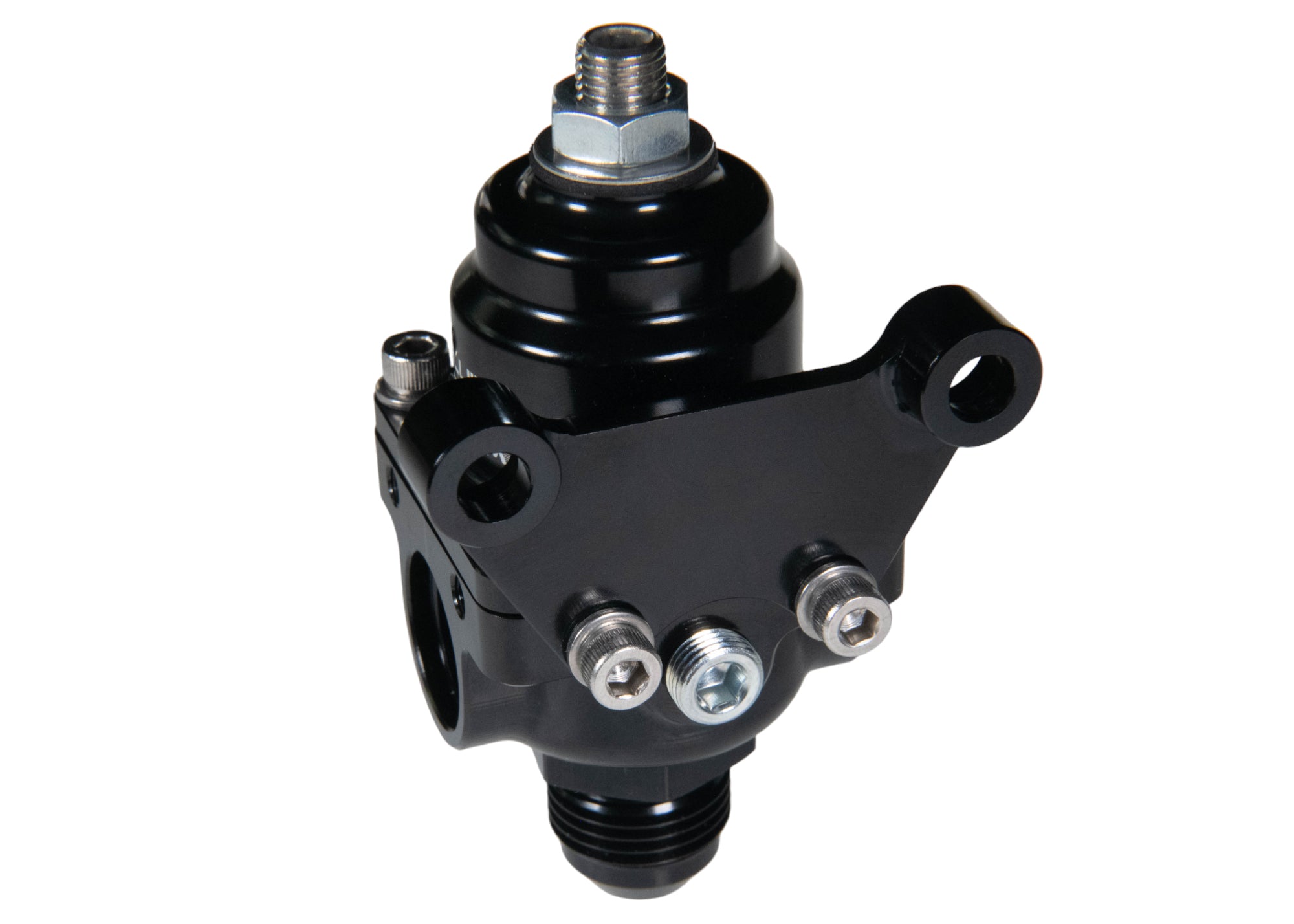

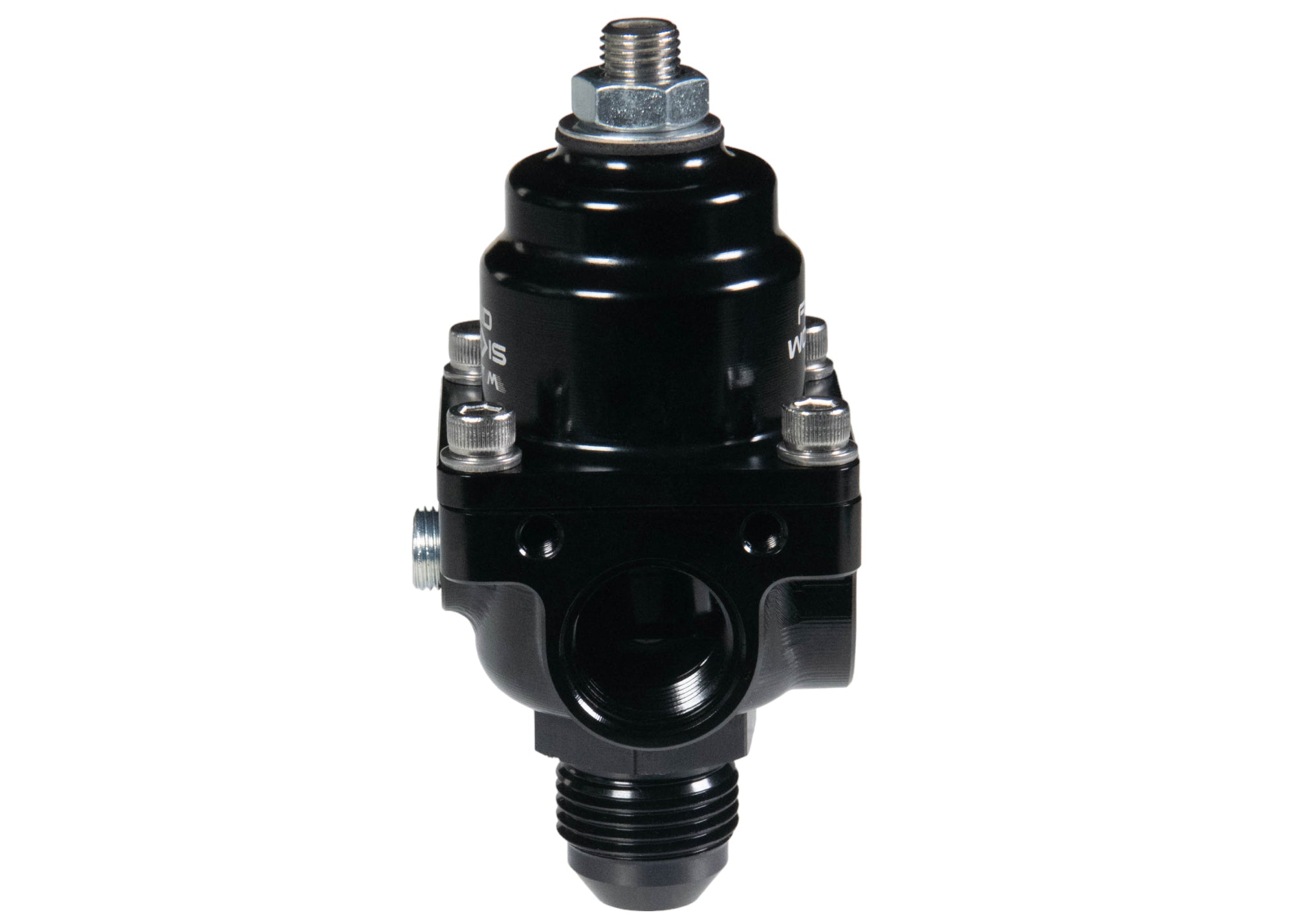

Fluidworks 1-10 gpm Fuel Pressure Regulator 35-70 psi 90 Degree Fittings 27-184

For Instructions:

Fluidworks innovative new fuel pressure regulators utilize an innovative needle and seat vent to control fuel bypass in a highly stable and consistent manner dynamically.

Features:

• Compatible with 1-10GPM fuel pump setups
• Black Anodized Exterior
• Can be used as Boost Reference or Atmospheric reference
• 1/8" NPT Female Reference Fitting

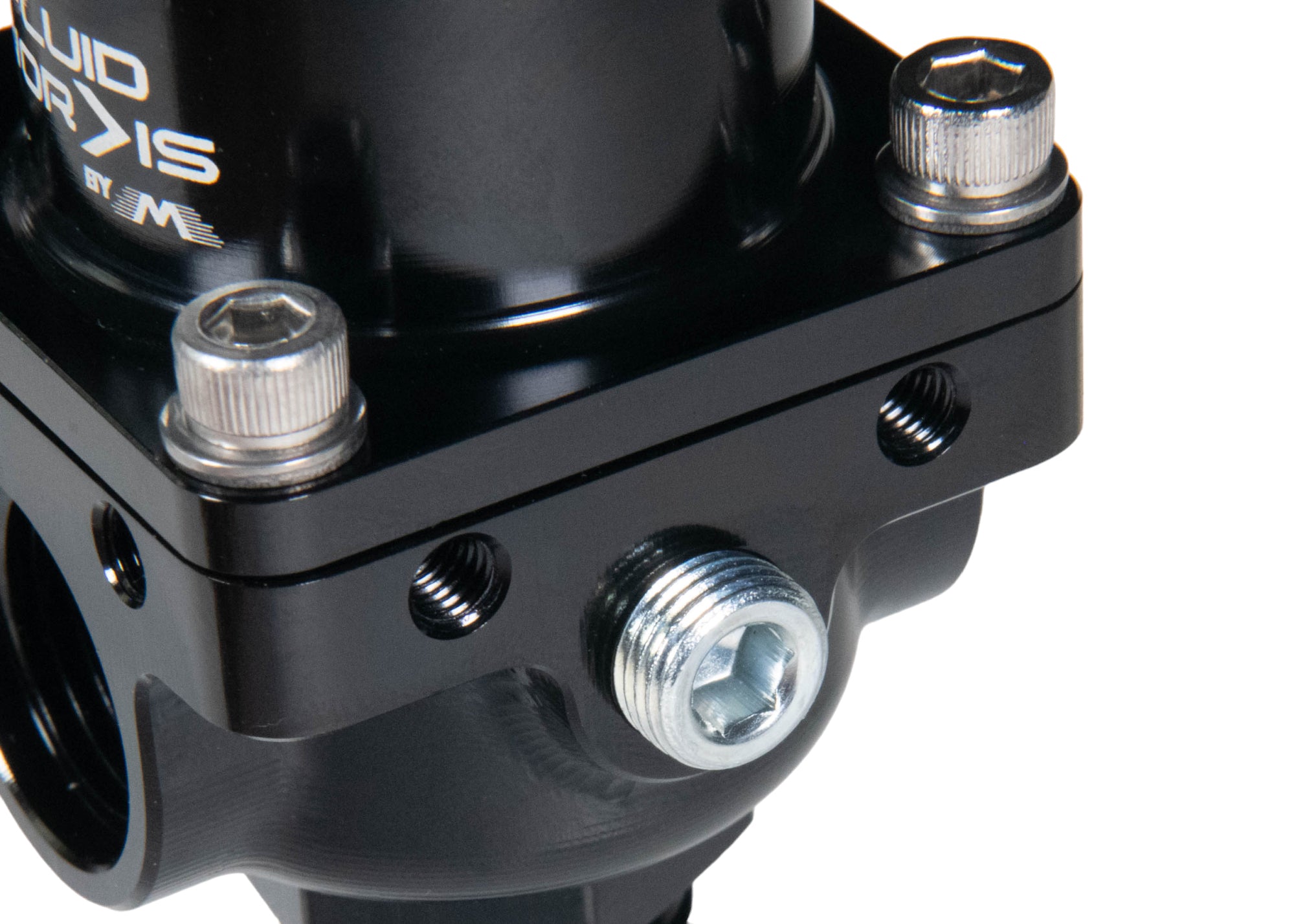

• (2) 1/8" NPTF Fuel Pressure Reference Ports for use with mechanical gauge and/or pressure transducer
• Approved for use with Gasoline, Oxygenated, Ethanol and Alcohol Fuels
• Made in the USA
• Tapered Needle and Seat Vent Relief
• Bypass Regulator
• (2) -8orb female 180 degree opposed inlet fittings
• Built in -8AN or -10AN return fitting (choose at checkout)
• Designed to be used in 35-70psi adjustable base pressure

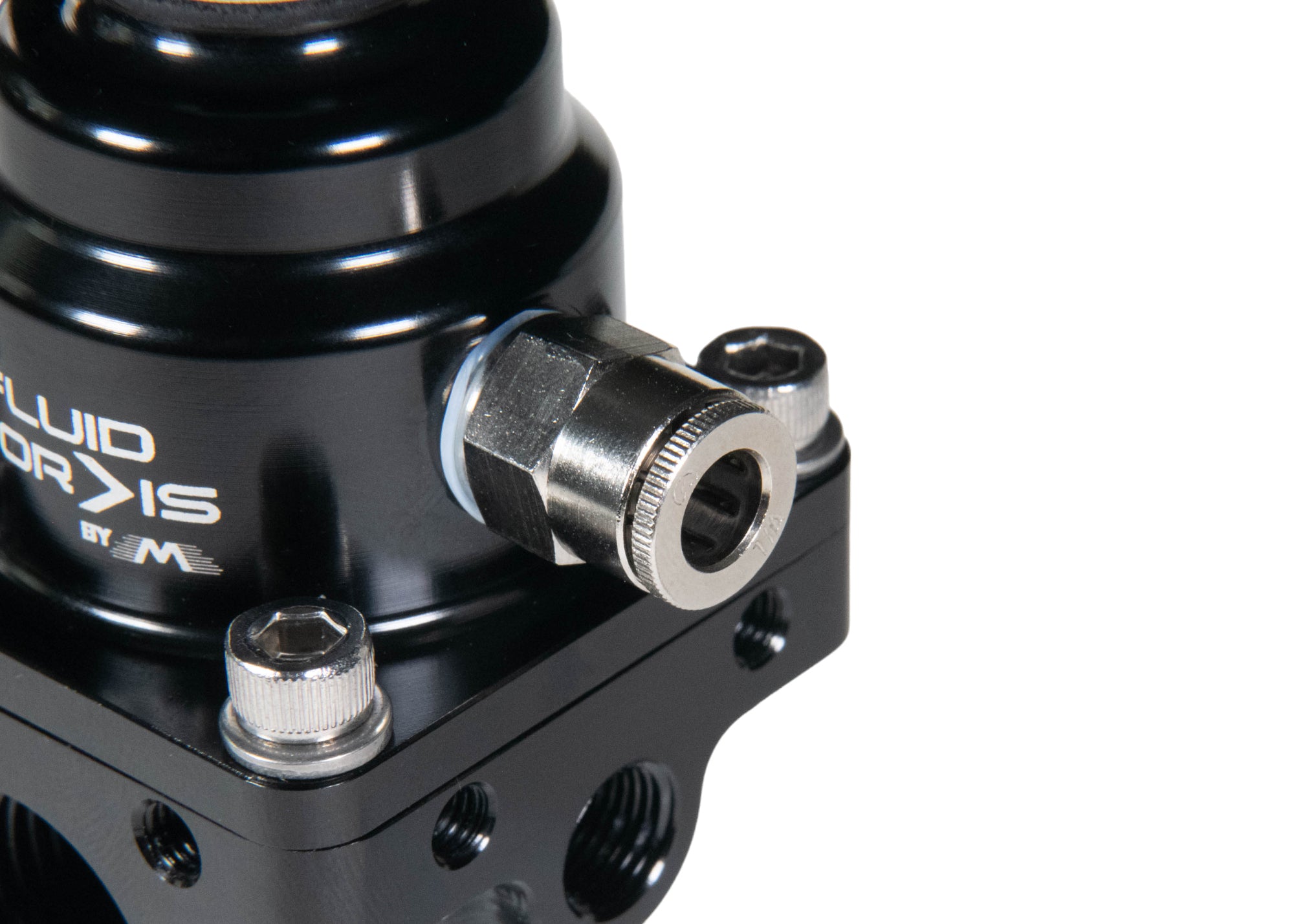

• Includes 1/8" NPT to 1/4" P2C hose fitting

For -8ORB to 8AN Fittings:

For -8ORB to 6AN Fittings:

For 8ORB male to 8ORB male Fittings:

For other Fluidworks Fuel Pressure Regulators and Fitting Configurations:

Note: Due to potential internal disruption, please make sure if using a reference line fitting other than that supplied, caution is taken to make sure the fitting is not too long causing spring bind when screwed into fuel pressure regulator housing.

Learn more about boost reference fuel pressure regulators in this Tech Tip Tuesday
