Motion Raceworks LS Timing Cover Fuel Regulator Bracket  27-10009 (Bracket Only)

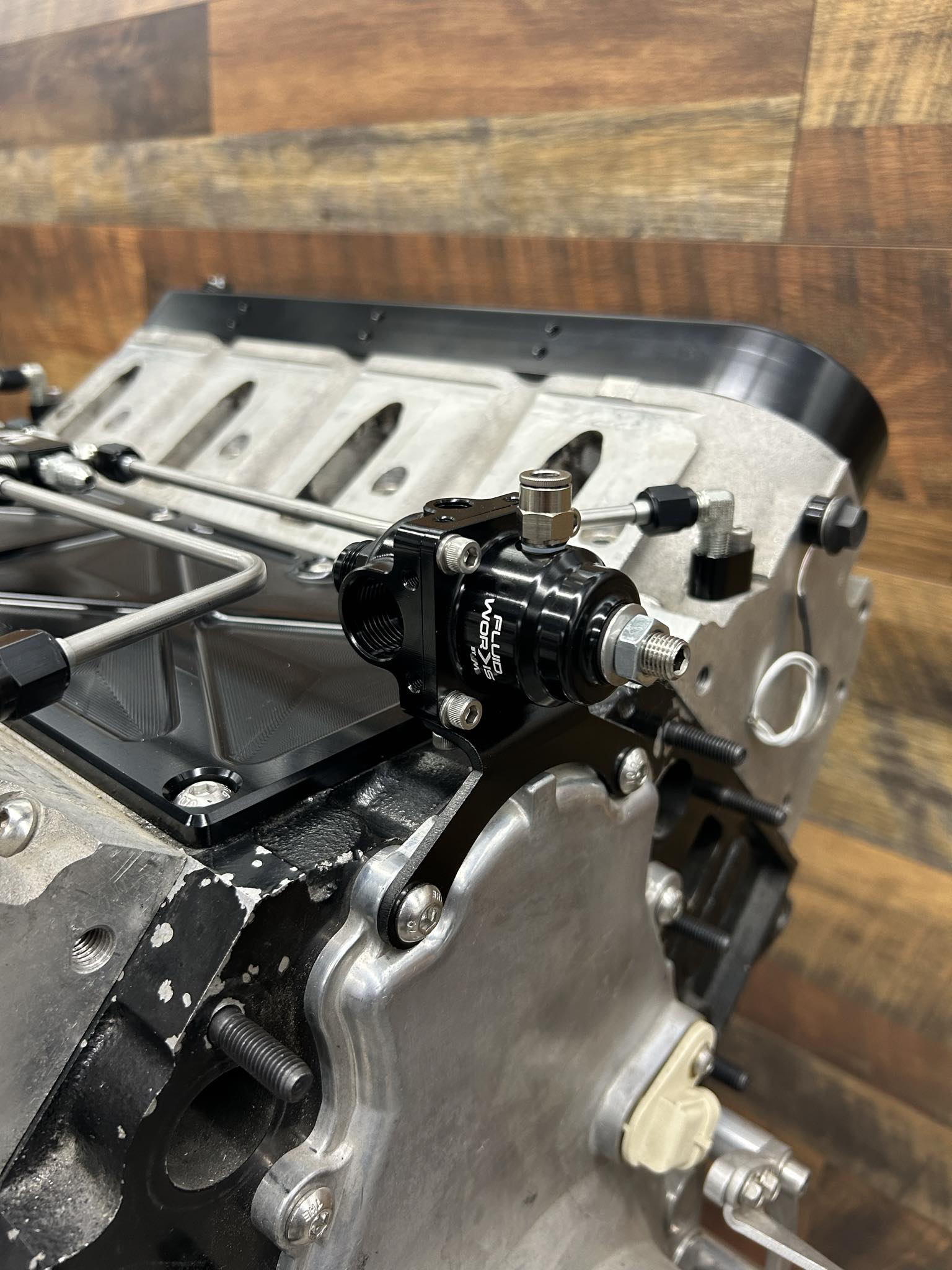

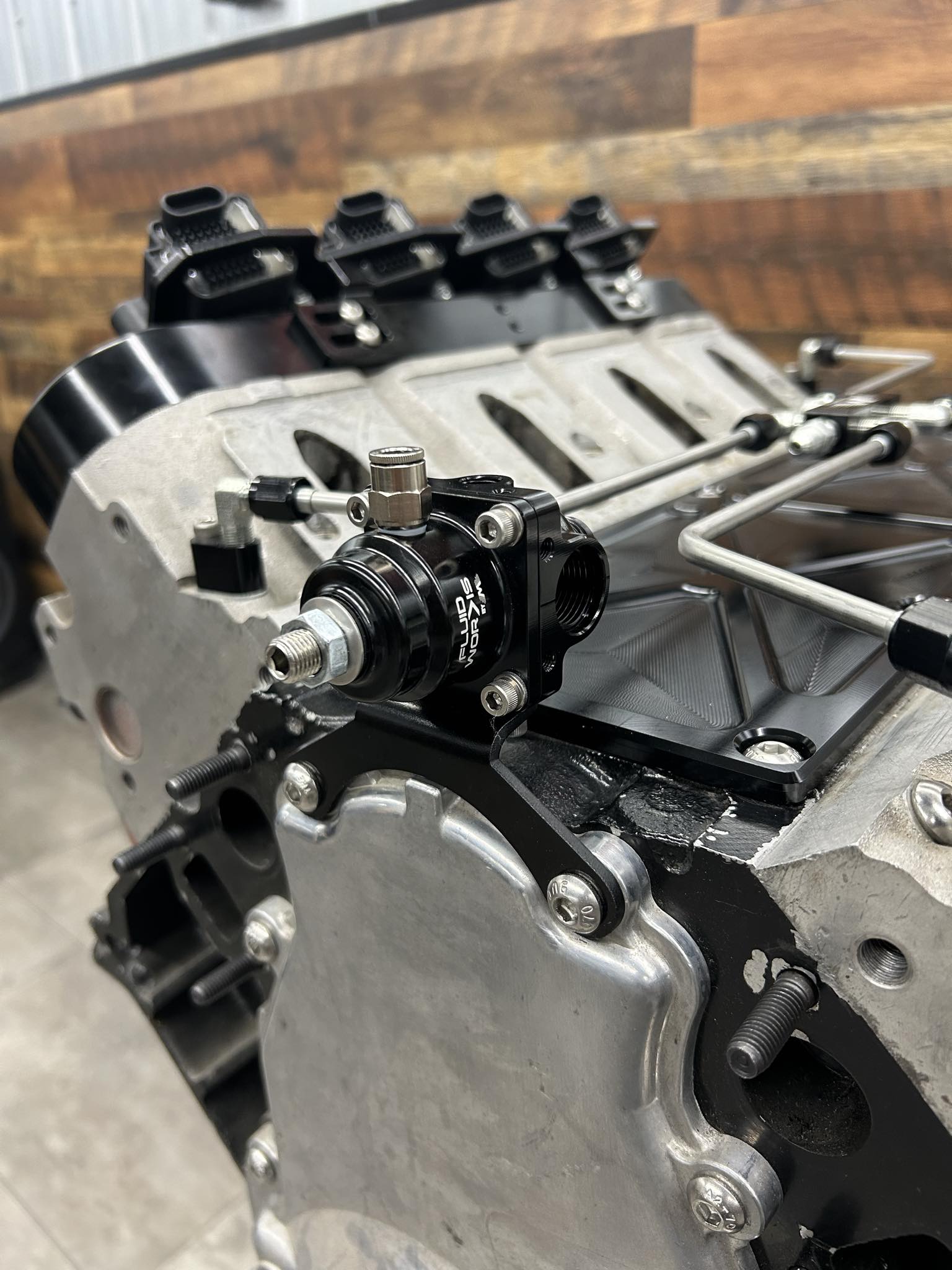

This is a bracket to mount a fuel pressure regulator off the top two bolts of an LSX timing cover.

This allows the return line to run under the intake, and is a perfect position for priority fuel pressure with the regulator after the rails. This item is laser cut from 5052 aluminum and available in black anodized finish.

This Bracket is designed to fit the Fluidworks Regulators with their mounting holes.

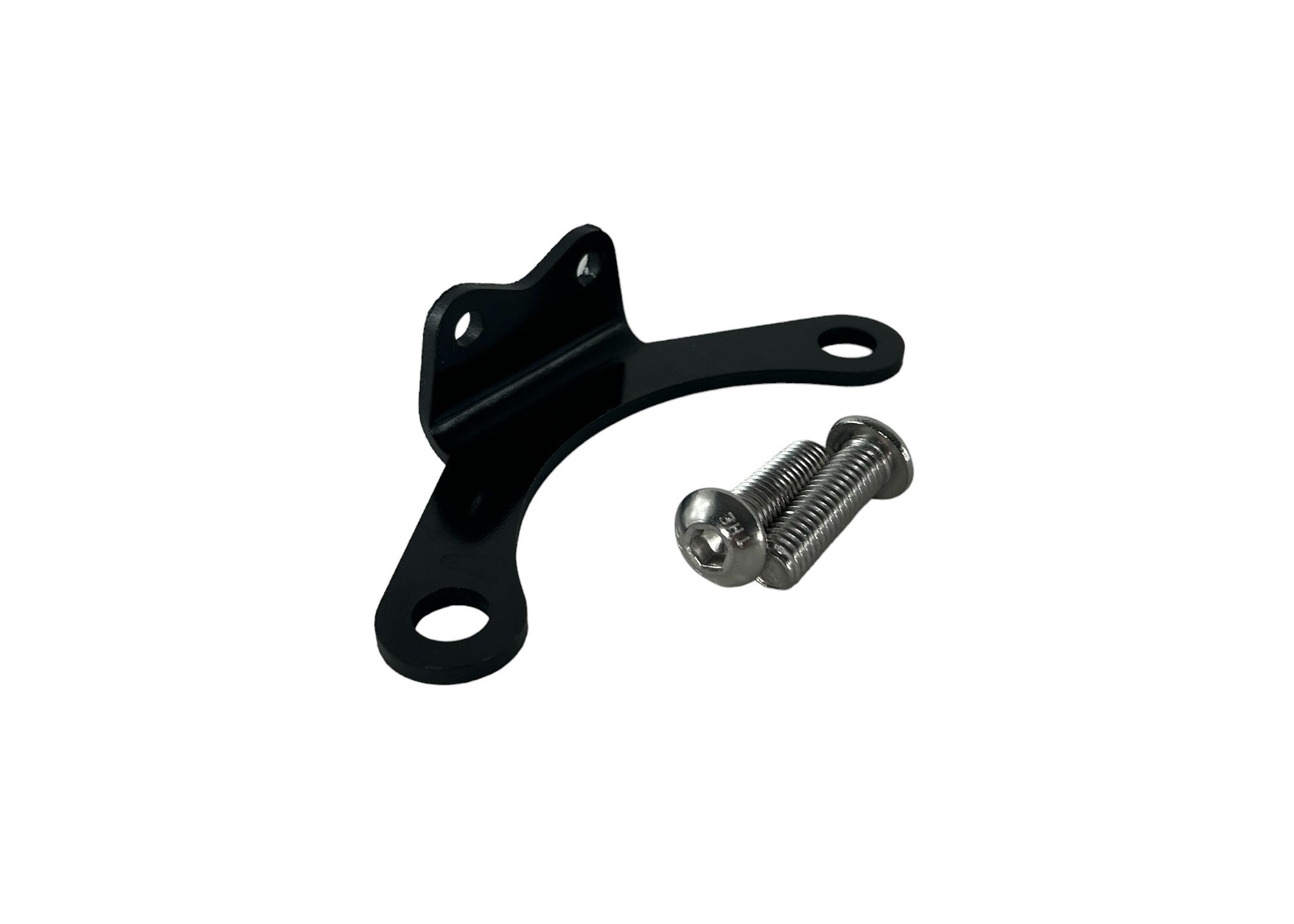

Timing Cover Stainless Button Head Bolts Included.

Add the Fitting Kit to connect to 6AN or 8AN fuel rails by selecting in the applicable options.

Included with this optional kit are:

• (2) 8ORB to 8AN fittings for regulator (Fragola 495103-BL)
• (2) 150 degree 8AN Hose Ends (Fragola 231508-BL)
• (2) 90 degree AN Hose Ends (Fragola 229008-BL)
• (2) feet AN Black Braided Nylon Hose (Fragola 840008)

      or

• (2) 8ORB to 6AN fittings for regulator (Fragola 495101-BL)
• (2) 150 degree 6AN Hose Ends (Fragola 231506-BL)
• (2) 90 degree 6AN Hose Ends (Fragola 229006-BL)
• (2) feet 6AN Black Braided Nylon Hose (Fragola 840006)

 ** Note:  This bracket will NOT clear a factory style intake.

Call if you have questions on fitment
